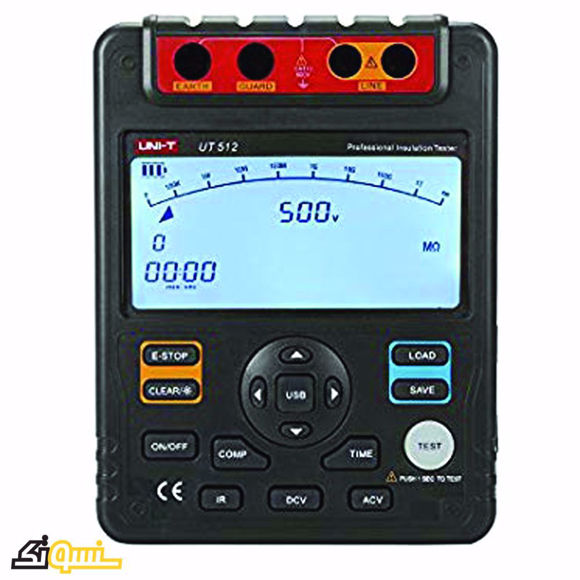

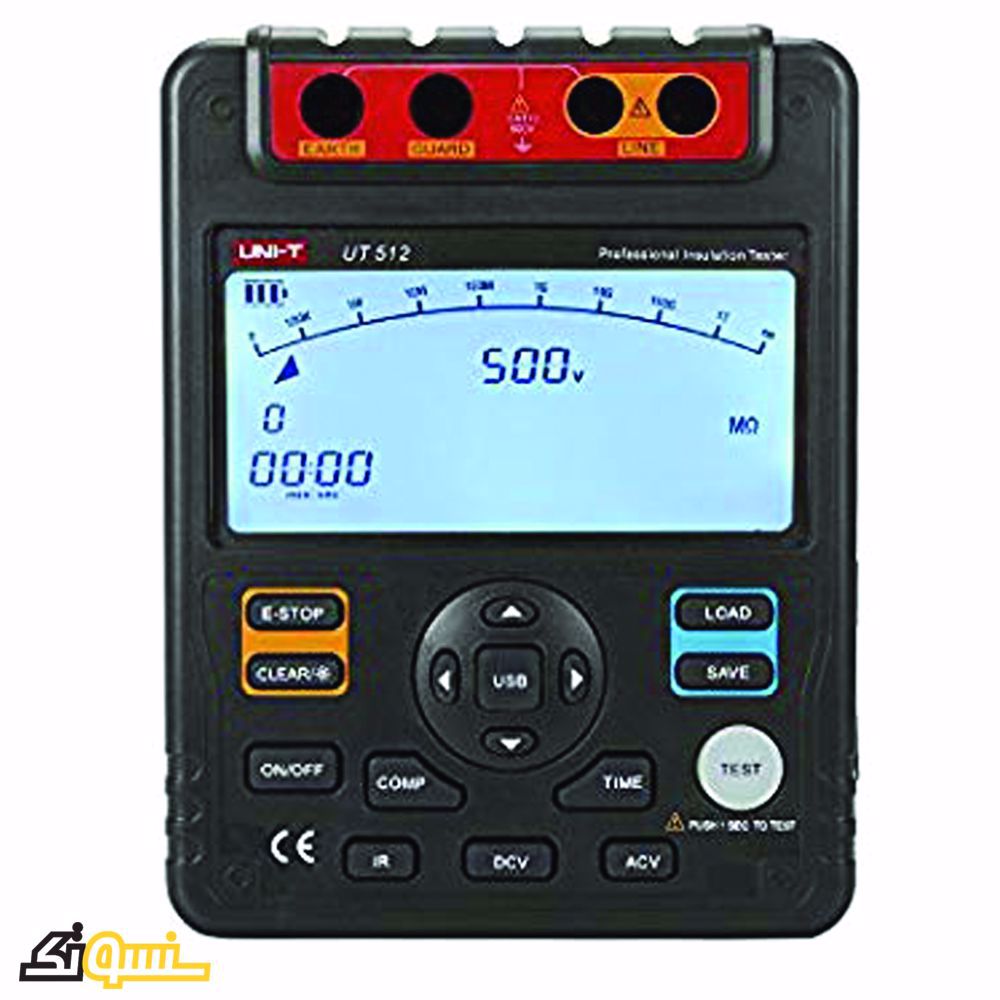

UT512 Insulation Resistance Tester

Testing Voltage:500V/1000V/2000V/2500V
Insulation Resistance:0.5M~100GΩ
Availability: Out of stock
Manufacturer: Uni-Trend
ریال

Insulation resistance tester UNI-T UT512 2.5kV with USB is available in sensotec website.

Insulation resistance tester UT 512 SPECIFICATION:

Insulation Resistance: 0.5MOhm ~100GOhm
- best accuracy: +/- (3%+5)
Testing Voltage: 500V / 1000V / 1500V / 2500V
- best accuracy: 0 ~ 20%
DC Voltage: 600V
- best accuracy: +/- (2%+5)
AC Voltage: 600V
- best accuracy: +/- (2%+5)
SPECIAL FUNCTIONS:
Auto Ranging
Short Circuit Current: < 1.8mA
Data Logging : 18
Sleep Mode
Polarization index (PI)
Dielectric Absorption (DAR)
Timer Around: 15 minutes

Insulation resistance tester UNI-T UT512 2.5kV with USB is available in sensotec website.

Insulation resistance tester UT 512 SPECIFICATION:

Insulation Resistance: 0.5MOhm ~100GOhm
- best accuracy: +/- (3%+5)
Testing Voltage: 500V / 1000V / 1500V / 2500V
- best accuracy: 0 ~ 20%
DC Voltage: 600V
- best accuracy: +/- (2%+5)
AC Voltage: 600V
- best accuracy: +/- (2%+5)
SPECIAL FUNCTIONS:
Auto Ranging
Short Circuit Current: < 1.8mA
Data Logging : 18
Sleep Mode
Polarization index (PI)
Dielectric Absorption (DAR)
Timer Around: 15 minutes

Products specifications
Producer UNI-T
Made in Taiwan
device type Portable
Insulation resistance range 0.5MOhm ~100GOhm
Insulation voltage 500V / 1000V / 1500V / 2500V
short circuit current <1.8mA
DC voltage 600V
AC voltage 600V
Connect to computer USB
Powered by 1.5V Alkaline Battery(LR14)×8
Dimensions 202×155×94 mm
Weight 1.8 kg
