LuminOx Sealed Optical Oxygen Sensor

Range of Measurement:
0to 25% O2 0 to 300mbar ppO2
Temperature Range: -30 to 60⁰C
Availability: Out of stock
Manufacturer: SST Sensing
Call for pricing

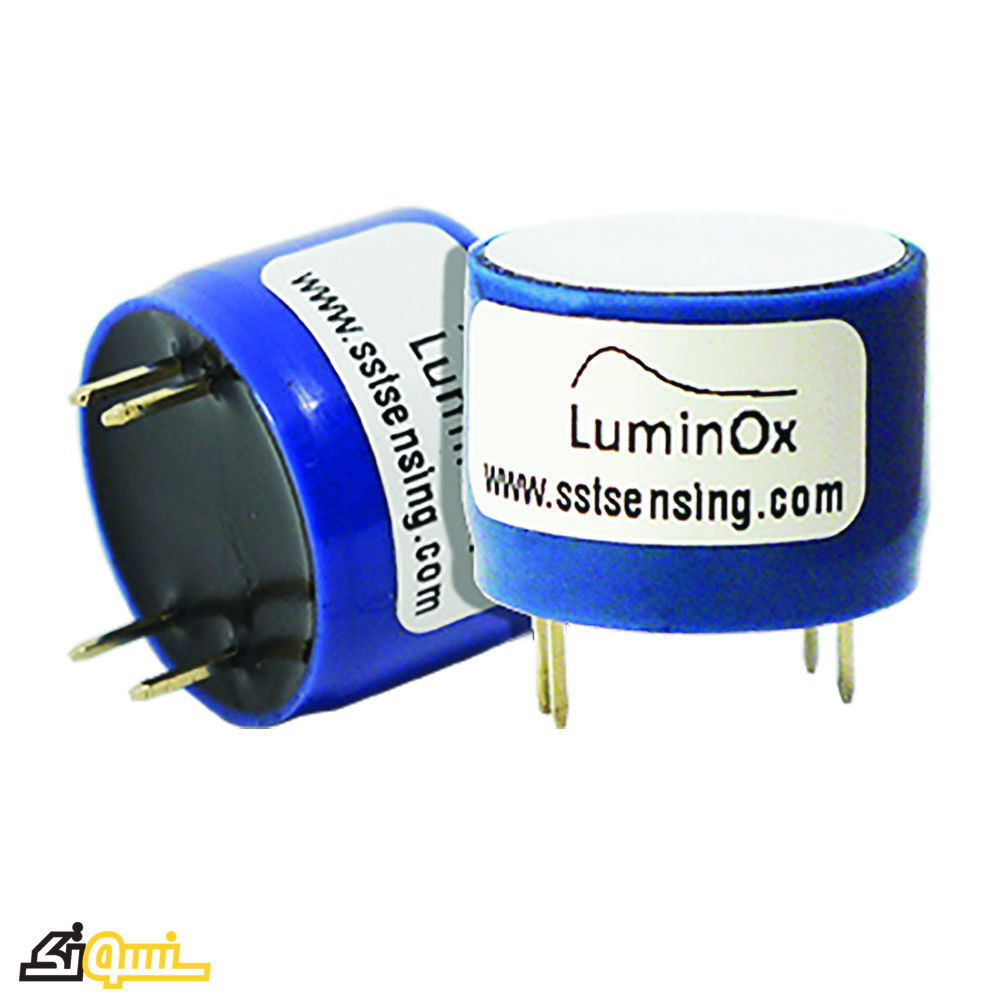

LuminOx Sealed Optical Oxygen Sensor (LOX-02-S) is an extension to the standard range of LuminOx oxygen sensors. It is a similar diffusion type sensor like the original LOX-02 sensor. However, the LOX-02-S has a sealed base that is gas-tight, meaning only the face of the sensor with the protective membrane needs to be in the sample gas environment, externally leaving easy access to the pins of the sensor. LuminOx Sealed Oxygen Sensor price is available in sensotec website.

LuminOx Sealed O2 sensors Features:

Supply voltage (Vs) 4.5—5.5VDC

Supply current (ls) <7.5mA (streaming one sample per second)

<20mA Peak

Output Type 3.3V TTL level USART

Temperature Operating: -30°C to +60°C

Storage: -30°C to +60°C

Humidity 0—99% Rh (non-condensing)

Barometric pressure range 500—1200mbar



LuminOx Sealed Optical Oxygen Sensor (LOX-02-S) is an extension to the standard range of LuminOx oxygen sensors. It is a similar diffusion type sensor like the original LOX-02 sensor. However, the LOX-02-S has a sealed base that is gas-tight, meaning only the face of the sensor with the protective membrane needs to be in the sample gas environment, externally leaving easy access to the pins of the sensor. LuminOx Sealed Oxygen Sensor price is available in sensotec website.

LuminOx Sealed O2 sensors Features:

Supply voltage (Vs) 4.5—5.5VDC

Supply current (ls) <7.5mA (streaming one sample per second)

<20mA Peak

Output Type 3.3V TTL level USART

Temperature Operating: -30°C to +60°C

Storage: -30°C to +60°C

Humidity 0—99% Rh (non-condensing)

Barometric pressure range 500—1200mbar



Products specifications
Attribute name Attribute value
Producer SST Sensing
Made in England
device type Sensor
Sensor Type O2
Gas Measurement Range 0-25%O2
Response time T90<30s
Temperature range -30-60⁰C
Powered by 4.5-5.5Vdc
