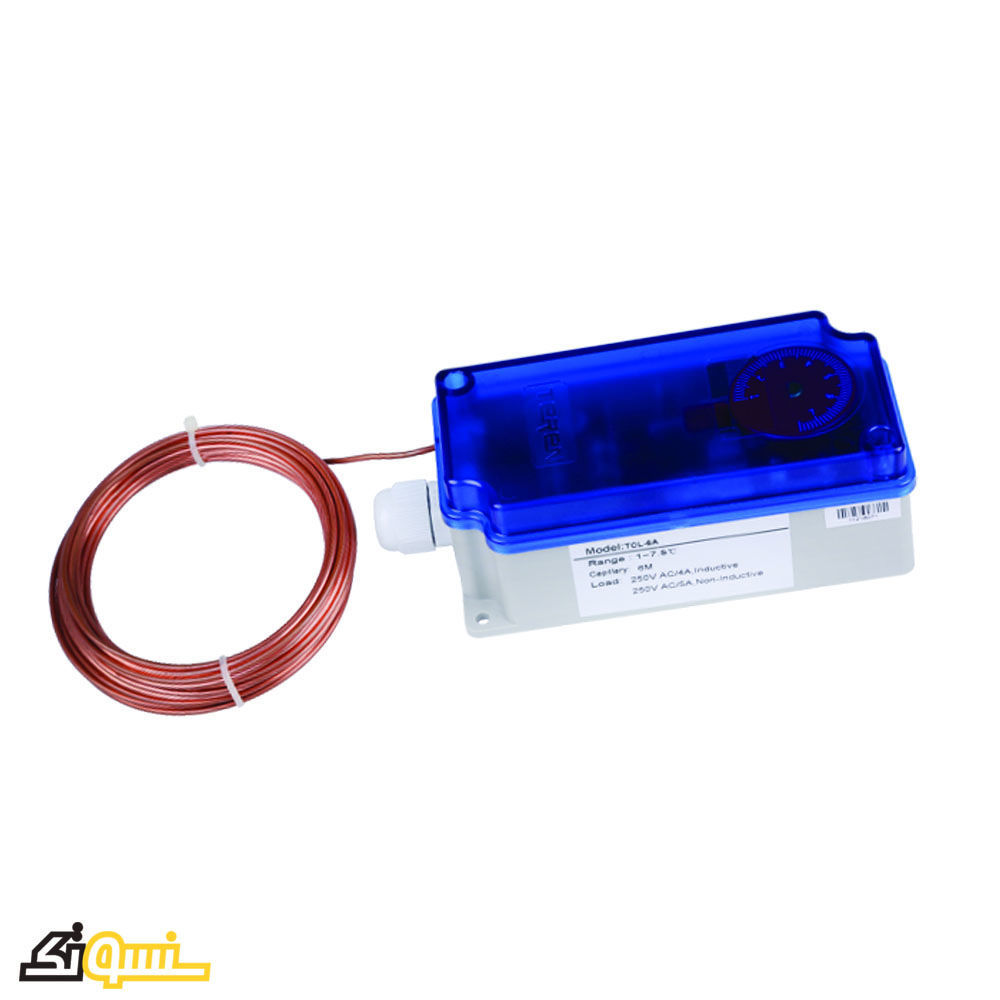

TCL Low Temperature Controller has a long sensing capillary filled with vapor. When any part of the component is below the temperature set point, the contact will actuate.
TCL controller Specifications:
Working environment: -10~70°C,<95%RH，no cond.
Sensitive element operating temperature range: -30~80°C
Electrical connection: screw terminal, 1.5mm2 wire, PG9
Electric strength: AC1500V/1min (AC1800V/1s)
Insulation resistance: ≥100MΩ in normal status, ≥10MΩ in moisture status
Sensitive element: copper capillary, φ2mm, 1.5/3/6m long
House： cover PC, body fireproof ABS
Protection: IP54
Contact life: ≥ 105
Weight: TCL-1A：220g;TCL-3A：250g;TCL-6A：310g
