UT681L Cable Tester

To test for: RJ45/RJ11
To test for:short circuit, crossover, open circuit
Fast/slow checking modes conversion
Availability: Out of stock
Manufacturer: Uni-Trend
ریال

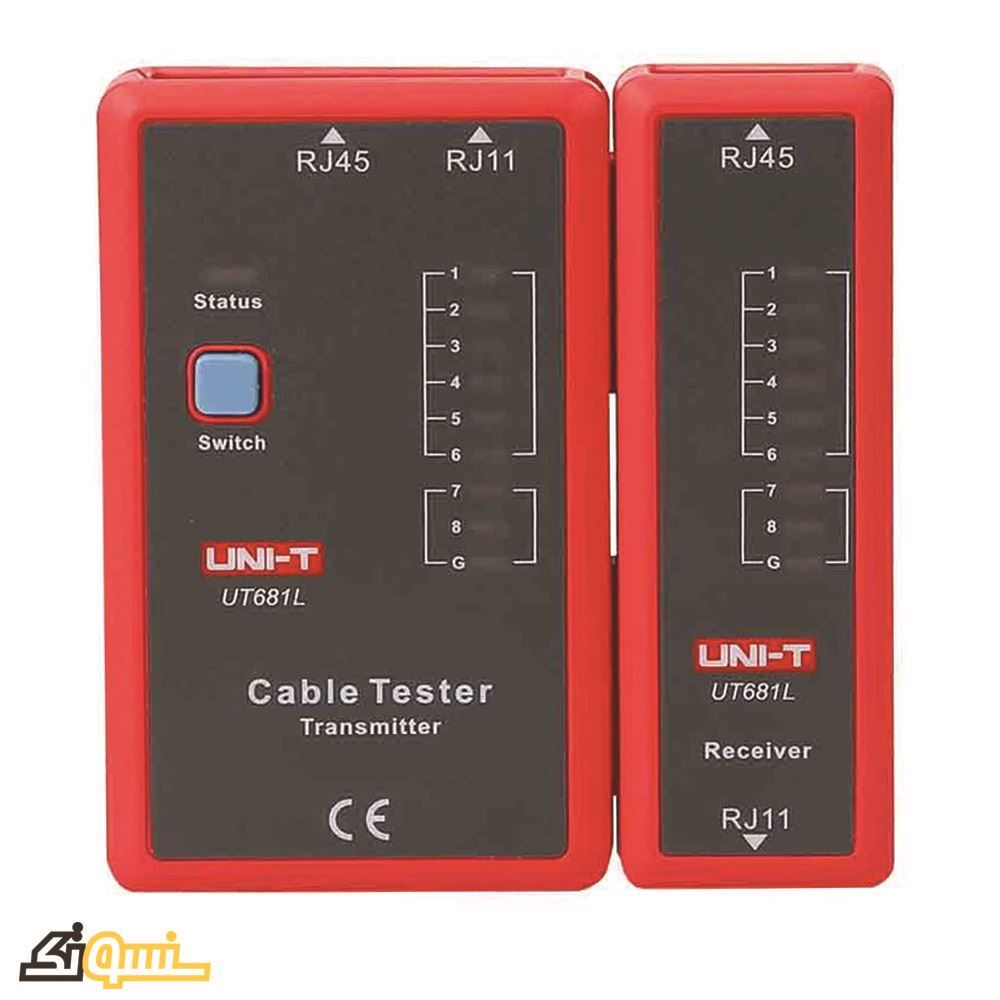

UT681L Cable Tester

UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit.UT681L Cable Tester is ideal tools for technicians to install, maintain and inspect week current system circuit.UT681L price is available in sensotec website.

Main features

1. LED status display

2. Auto check of open/short/crossover circuit

3. Fast/slow checking modes conversion

4. Single key operation

5. Manual/auto power off (after 10-minute inactivity)

6. Low battery indication

7. CE certification

8. Power supplied by 9V battery



Item Function  Model  Description
UT681L
Test function  To test for: RJ45/RJ11
Fast test mode  LED1~LED8, LED_G
Low test mode  LED1~LED8, LED_G

To test for the case of short

 circuit, crossover, open circuit, etc.


Ethernet cable: shielded/ unshielded test
Manual shutdown function
Auto shutdown function  No operation within 10 minutes, the device will shut down automatically
Single key operation
Power supply: 9V battery
 Low voltage detection  About less than 7.2V
Application  environment  Working temperature: 0~40℃
Storage temperature: -10~50℃
Working humidity: 20~80% RH
Storage humidity: 10~90% RH
Altitude: ≤2000 meters

Safety

standard

CE EN61326-1: 2013; EN61326-2-2: 2013

UT681L Cable Tester

UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit.UT681L Cable Tester is ideal tools for technicians to install, maintain and inspect week current system circuit.UT681L price is available in sensotec website.

Main features

1. LED status display

2. Auto check of open/short/crossover circuit

3. Fast/slow checking modes conversion

4. Single key operation

5. Manual/auto power off (after 10-minute inactivity)

6. Low battery indication

7. CE certification

8. Power supplied by 9V battery



Item Function  Model  Description
UT681L
Test function  To test for: RJ45/RJ11
Fast test mode  LED1~LED8, LED_G
Low test mode  LED1~LED8, LED_G

To test for the case of short

 circuit, crossover, open circuit, etc.


Ethernet cable: shielded/ unshielded test
Manual shutdown function
Auto shutdown function  No operation within 10 minutes, the device will shut down automatically
Single key operation
Power supply: 9V battery
 Low voltage detection  About less than 7.2V
Application  environment  Working temperature: 0~40℃
Storage temperature: -10~50℃
Working humidity: 20~80% RH
Storage humidity: 10~90% RH
Altitude: ≤2000 meters

Safety

standard

CE EN61326-1: 2013; EN61326-2-2: 2013
Products specifications
Attribute name Attribute value
Producer UNI-T
Made in Taiwan
device type Portable
Display screen LED status display
Working temperature 0~40℃
Storage temperature -10~50℃
Working humidity 20~80% RH
Storage humidity 10~90% RH
Powered by 9V battery
